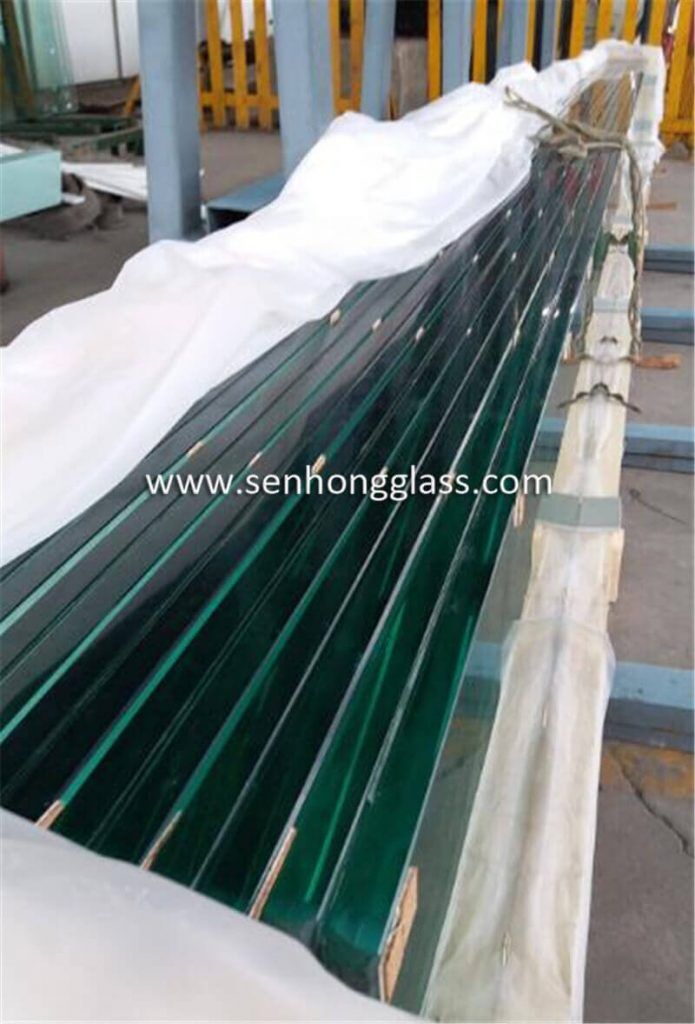

19mm Jumbo Tempered Glass
China 19mm Heat Soaked Tempered Glass, 19mm Jumbo Tempered Glass, China Tempered Safety Glass Manufacturer, Oversized Tempered Glass, Jumbo Toughened Glass, Safety Glass. Max size: 3300x13000mm
| Port | Qingdao |
|---|---|
| Lead time | 15 Days for 20′ Container |
| Quality Standard | AS/NZS 2208, ANSI Z97.1, EN12150, EN14179 |
| MOQ | 50 SQM |
| Package | Seaworthy Plywood Cases. |
| Max Size | 3300x13000mm |
| Sample | Free of Charge |
| HS Code | 70071900 |
19mm Jumbo Tempered Glass
Jumbo Tempered glass is made by heating flat glass to just below its softening temperature and suddenly chilling it with jets of cold air. It results the outer skins under powerful compressive stress and the interior with severe tensile stress. In consequence, the impact applied to the glass will be overcome by the compression stress on the surfaces to assure safety of use.
Tempered safety glass has a much higher thermal shock resistance than float glass. Tempered safety glass can resist a thermal shock of as much as 150K, whereas float glass can only withstand thermal shock of 40K. Tempered safety glass is considered safety glass, however, primarily due to the way it breaks. Because it is in state of internal tension, when it breaks it shatters suddenly into small fragments with blunt edges, which considerably reduce the risk of severe injury.
Thickness: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm
Max Size: 13000 x 3300mm
Minimum Size: 300 x 300mm
Color: clear, blue, grey, light green, bronze, etc.
Jumbo Tempered Glass With Holes & Cutouts
Packing & Loading
Application
1. Skylight, storefront, office indoor partition;
2. Shower door, sliding door, swinging door;
3. Pool fence, balustrade, balcony;
4. Dining table, glass furniture;
5. Window, curtain wall, stairs, glass wall, glass railing;
6. Splash back, shower screen, glass floor.
Test Report & Certificate
