8.76mm 10.76mm 12.76mm Acoustic Laminated Glass With Saflex Acoustic PVB interlayer

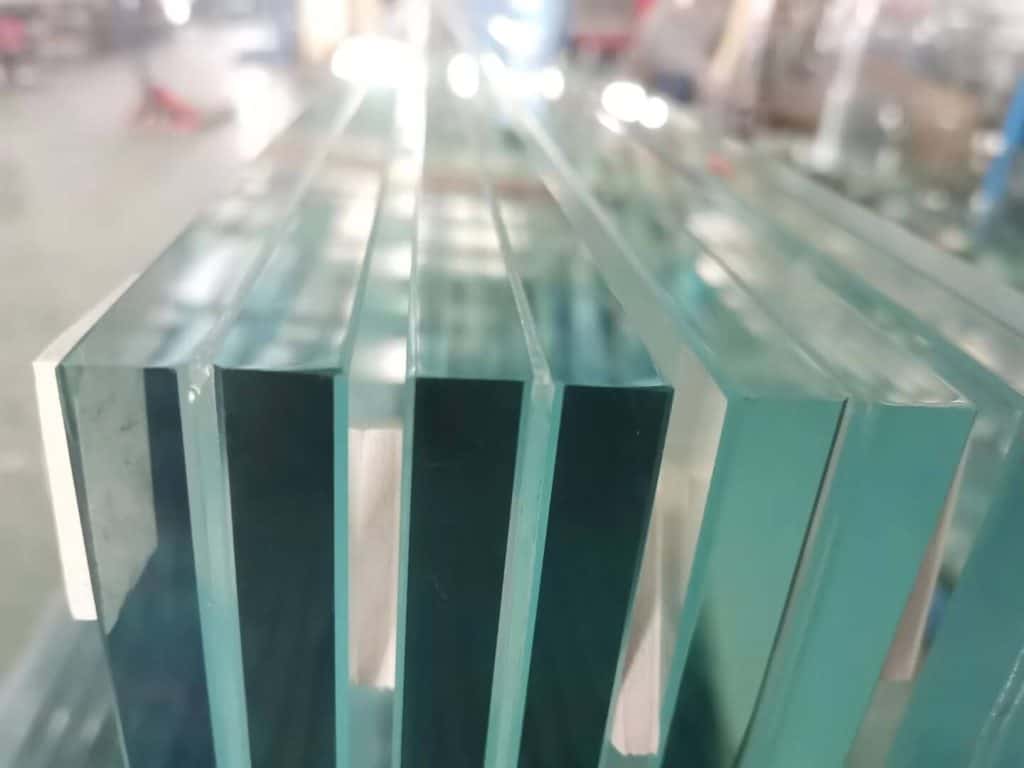

Acoustic laminated glass with Saflex Acoustic PVB interlayer

Expanded acoustic portfolio cuts perceived noise by up to 50%.

Acoustic laminated glass is a type of safety glass designed to reduce noise transmission between different spaces or from the exterior to the interior of a building. It consists of two or more layers of glass that are bonded together with a special interlayer of polyvinyl butyral (PVB) or ethylene-vinyl acetate (EVA) resin. The interlayer serves as a sound-dampening material that reduces the vibration of sound waves passing through the glass, thereby reducing the amount of noise that enters the building.

Eastman introduces an expanded Saflex® Acoustic portfolio for architectural glazing applications. Each interlayer is a multilayer product designed with improved handling and processability in mind. The product allows laminators to produce glass laminates with enhanced acoustical properties compared to laminates made with standard polyvinyl butyral (PVB).

Sound transmission loss of laminated glass with Saflex® Acoustic interlayer and Saflex® Clear interlayer; configuration 44.2

As a coextruded product, Saflex Acoustic has all the advanced acoustic benefits of an acoustic PVB with process parameters similar to standard Saflex Clear products. Reduced handling time
combined with improved lamination yield will help glass laminators stay more competitive in the fast-growing acoustic LAG market.

Other benefits the products provide include:
• Compatibility with clear and translucent white Saflex PVB
• Same shelf life as Saflex Clear products

Specification of Acoustic laminated glass

• Thickness: 8.76mm, 10.76mm, 12.76mm.
• Size: 3300x2134mm, 2440x1830mm,3660x2134mm, 3660x2440mm, etc.
• Film type: Saflex Acoustic PVB interlayer
• Thickness of PVB: 0.63mm, 0.76mm, 1.52mm.
• Film Color: Clear.

Performance data of Acoustic laminated glass with Saflex Acoustic PVB interlayer

Laminated Glazing with Saflex® interlayer
Acoustical Performance Data

Additional benefits of acoustic laminated glass with Saflex Acoustic PVB interlayer

• Safety protection
• Burglary protection
• Storm protection
• UV protection

Packing & Loading of Acoustic Laminated Glass

Application of Acoustic Laminated Glass

• 1. Skylight, storefront, office indoor partition;
• 2. Interior partitions, conference rooms, and recording studios.
• 3. Window, curtain wall, glass wall.

Around the world, architects and designers trust Saflex when performance and safety are their most critical concerns. The reason for their confidence is simple. No matter what the specifications or performance targets, Saflex interlayer technology delivers advanced glazing performance for demanding applications.

Acoustic laminated glass with Saflex Acoustic PVB interlayer supplied by Senhong Glass is a high-performance glass product that provides excellent sound insulation properties while also offering the safety and security benefits of laminated glass.

Acoustic laminated glass can be customized to meet specific acoustic requirements, and its thickness and composition can be adjusted to achieve different levels of sound reduction. It is commonly used in buildings located in busy urban areas, near airports or highways, or in areas where noise pollution is a significant problem. Acoustic laminated glass is also a popular choice for interior partitions, conference rooms, and recording studios, where sound insulation and privacy are critical.
