8+16A+8mm Energy-Saving Glass

China Low-e Double Glazed Energy-Saving Glass Manufacturer, Insulated Glass Price China, IGU Glass, Energy-Saving Glass, Solar Control Glass, Low-e Double Glazed Glass, Low-e Energy-Saving Insulated Glass, Jumbo Low-E Insulating Glass Glass

Port

Qingdao

Lead time

15 Days for 20′ Container

Quality Standard

AS/NZS 2208, ANSI Z97.1, EN12150, EN14179, EN14449

MOQ

50 SQM

Package

Seaworthy Plywood Cases.

Max Size

3300x10000mm

Sample

Free of Charge

HS Code

70080010

8+16A+8mm Energy-Saving Glass

Senhong low-e insulating Glass China Insulated Glass Manufacturer 9

Low E double glazed energy-saving glass is a product that uses one or two pieces of Low E glass. It can reduce heat transfer and increase the energy-saving effect.

Double glazed glass is made up of two pieces or several pieces of glass which is bonded with an aluminium frame with desiccant in it in order to dry the air, and then it is secondary sealed with silicone sealant.

The thermal protection coating serves to reduce energy loss from thermal radiation, which is why this layer is also referred to as a Low-E layer.

Silver has become established as the most common coating, as it has not only extremely low emissivity but also high great color neutrality and light transmission. Thermal insulating glass is therefore almost indistinguishable from the uncoated insulating glass with the naked eye.

Specification of Low-e Energy-Saving Glass

  • Thickness: 5+9A+5mm; 6+12A+6mm; 6+16A+6mm; 8+12A+8mm; 8+16A+8mm; etc
  • Max Size: 3300mm x 10000mm (except for manual production) Min Size: 180mm x 350mm
  • Air or argon spacer gap: 6mm, 9mm, 12mm, 15mm, 16mm etc
  • Glass Option: Annealed Float glass, Low-E Glass, Tinted Glass, Reflective Glass, Laminated Glass, Tempered Glass, Silkscreened Glass etc
  • Glass Color: Clear, Ultra Clear( low iron), light blue, Ford blue, dark blue, ocean blue, light gray, blue gray, light green, gold, bronze etc.

Holes & Edges

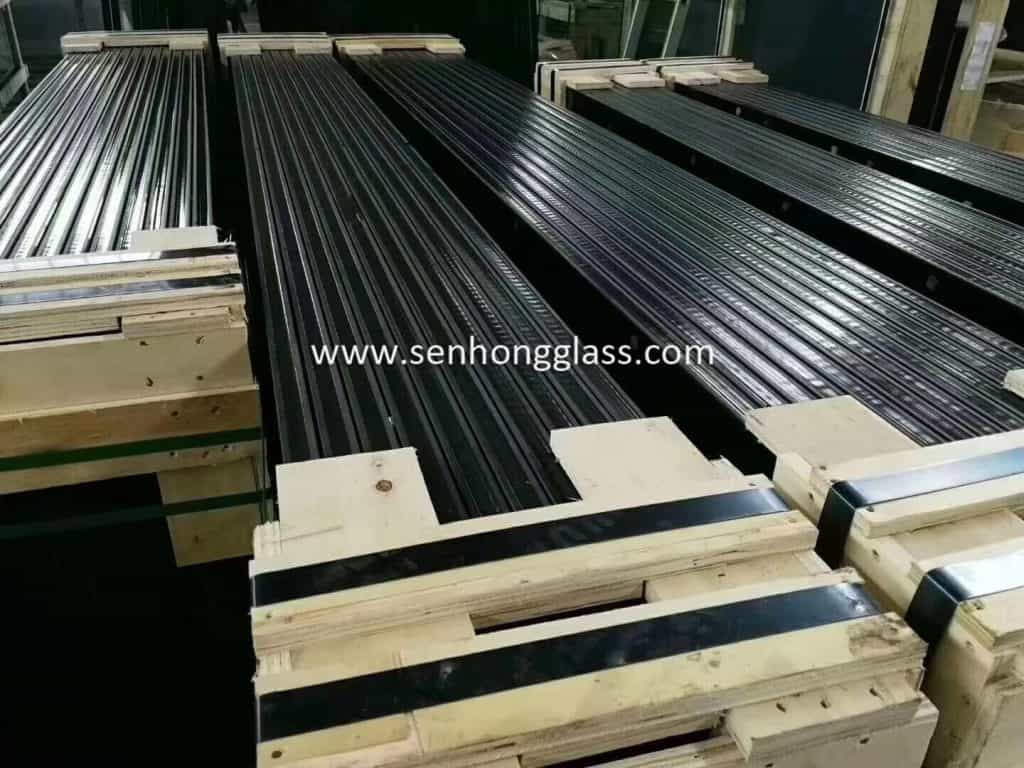

Packing & Loading

Application

1. Skylight, storefront, office indoor partition;
2. Shower door, sliding door, swinging door;
3. Pool fence, balustrade, balcony;
4. Dining table, glass furniture;
5. Window, curtain wall, stairs, glass wall, glass railing;
6. Splash back, shower screen, glass floor.
