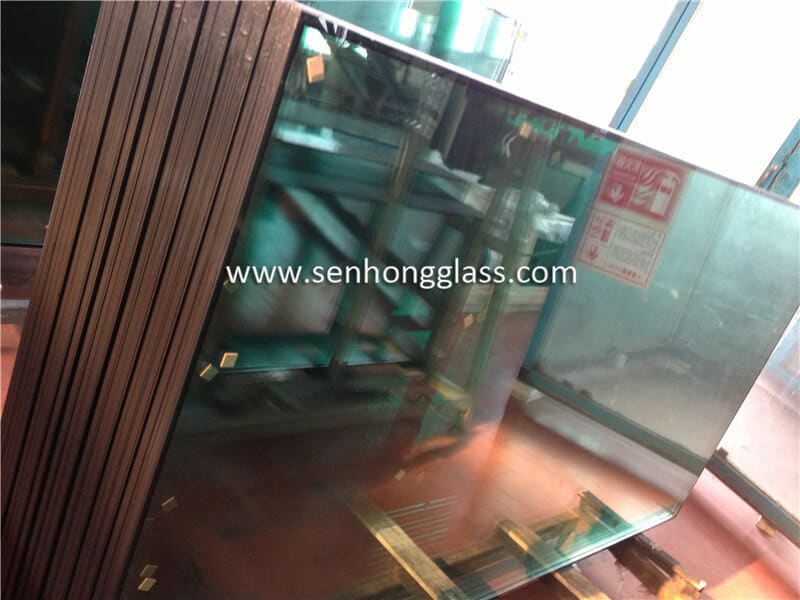

8+12A+8mm Low-E Insulating Glass

China Low-E Insulating Glass Manufacturer, Low-e Double Glazed Glass, Energy-Saving Glass, Solar Control Glass, Low-e Insulated Glass, Jumbo Low-E Insulating Glass Glass

8+12A+8mm Low-E Insulating Glass


Low E Insulating Glass is a product that uses one or two pieces of Low E glass. It can reduce heat transfer and increase the energy-saving effect.

Insulated Glass is made up of two pieces or several pieces of glass which is bonded with an aluminium frame with desiccant in it in order to dry the air, and then it is secondary sealed with silicone sealant.

The thermal protection coating serves to reduce energy loss from thermal radiation, which is why this layer is also referred to as a Low-E layer. Silver has become established as the most common coating, as it has not only extremely low emissivity but also high great color neutrality and light transmission. Thermal insulating glass is therefore almost indistinguishable from the uncoated insulating glass with the naked eye.

Specification of Low-E Insulating Glass

  • Thickness: 5+9A+5mm; 6+12A+6mm; 6+16A+6mm; 8+12A+8mm; 8+16A+8mm; etc
  • Max Size: 3300mm x 10000mm (except for manual production) Min Size: 180mm x 350mm
  • Air or argon spacer gap: 6mm, 9mm, 12mm, 15mm, 16mm etc
  • Glass Option: Annealed Float glass, Low-E Glass, Tinted Glass, Reflective Glass, Laminated Glass, Tempered Glass, Silkscreened Glass etc
  • Glass Color: Clear, Ultra Clear( low iron), light blue, Ford blue, dark blue, ocean blue, light gray, blue gray, light green, gold, bronze etc.

Packing & Loading


Window, sliding door, swinging door, curtain wall, glass wall.
