6.38mm 8.38mm 10.38mm 12.38mm Pink Laminated Glass Good Quality

China Pink Laminated Glass Price, 6.38mm 8.38mm 10.38mm 12.38mm Pink Laminated Glass, Colored Pink Laminated Glass in China

Port

Qingdao

Lead time

15 Days for 20′ Container

Quality Standard

EN 14449, AS/NZS 2208

MOQ

50 SQM

Package

Seaworthy Plywood Cases.

Max Size

3300x13000mm

Sample

Free of Charge

HS Code

70072900

6.38mm 8.38mm 10.38mm 12.38mm Pink Laminated Glass Good Quality

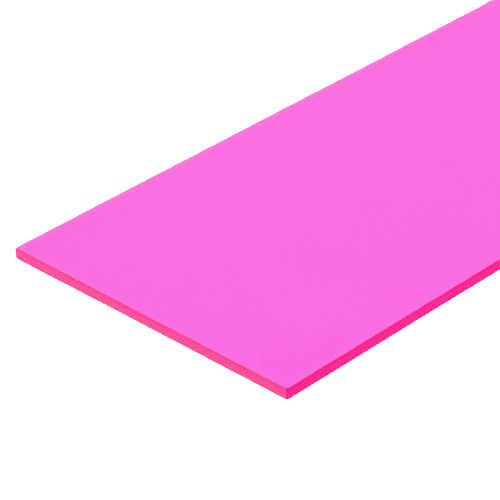

Pink laminated glass is formed as sandwich of 2 sheets of glass, between which is bonded together with a tough and thermoplastic polyvinyl butyral (PVB) interlayer under heat and pressure.

The viscoelastic PVB film is characterized by good adherence to glass, high tear strength, and high transparency and resistance to light. The nominal thickness of PVB film is 0.38mm but it can be made many times that thickness if requested. Hence nominal thickness of 0.38mm, 0.76mm, 1.14mm, 1.52mm are available.

There are three steps to produce laminated glass.

China laminated glass manufacturer, tinted laminated glass

  1. A preliminary lamination between the glass and the film is produced in a clean room.
  2. The glass and film pass through the preliminary laminating oven in which the temperature and the pressure of the rollers increase the adherence of the glass and the film.
  3. The final laminate is created in an autoclave under high pressure and intense heat. Only then does the previously cloudy film obtain its high transparency.

Senhong Glass China Tinted Laminated Glass Manufacturer 2

Colored Laminated Safety Glass is often used today instead of body tinted glass made with colored paste. Rather than treating the glass itself, the color is introduced by means of colored films glued between two layers of glass.

A composite of glass, film, and glass behaves like traditional laminated safety glass, since PVB is used as the raw material for the extruded color films. Hence it is possible to generate more than a thousand transparent, translucent, and opaque colors from eleven basic colors.

Specification

  • Thickness: 5.38mm, 6.38mm,8.38mm,10.38mm,12.38mm, etc.
  • Size: 3300x2134mm, 2440x1830mm,3660x2134mm, 3660x2440mm, etc.
  • Film type: Normal PVB, Dupont Sentry Glass Plus (SGP), Saflex
  • Thickness of PVB: 0.38mm, 0.76mm, 1.14mm, 1.52mm, 2.28mm, 3.04mm
  • Film Color: Milk White, Blue Green, Bronze, Euro Grey, Dark Grey, Blue, Green, etc.

Loading Quantity of Pink Laminated Glass

Thickness Size(mm) Sheets/Crate QTY Total Total
  (mm) W L crate/20’GP sqm/20’GP kgs/20’GP
6.38 2134 3300 26 9 1647.87 24718.12
8.38 2134 3300 20 9 1267.60 25351.92
10.38 2134 3300 16 9 1014.08 25351.92
12.38 2134 3300 13 9 823.94 24718.12
6.38 1830 2440 30 12 1607.47 24112.08
8.38 1830 2440 23 12 1232.40 24647.90
10.38 1830 2440 18 12 964.48 24112.08
12.38 1830 2440 15 12 803.74 24112.08

Packing & Loading



Application

1. Skylight, storefront, office indoor partition;
2. Shower door, sliding door, swinging door;
3. Pool fence, balustrade, balcony;
4. Dining table, glass furniture;
5. Window, curtain wall, stairs, glass wall, glass railing;
6. Splash back, shower screen, glass floor.
