Tempered Laminated Glass

China Tempered Laminated Glass Heat Soaked, Jumbo Toughened Laminated Glass, Oversized SGP Tempered Laminated Glass, Toughened Laminated Glass, Safety Laminated Glass. Max size: 3300x13000mm

Tempered Laminated Glass

Tempered laminated glass is composed of at least two panes of tempered glass by PVB or SGP film. It has a much higher thermal shock resistance than float laminated glass.

When the pane breaks, the small fragments with blunt edges generally remain stuck to the PVB or SGP film. It is difficult to pierce the film, which considerably reduce the risk of injury.

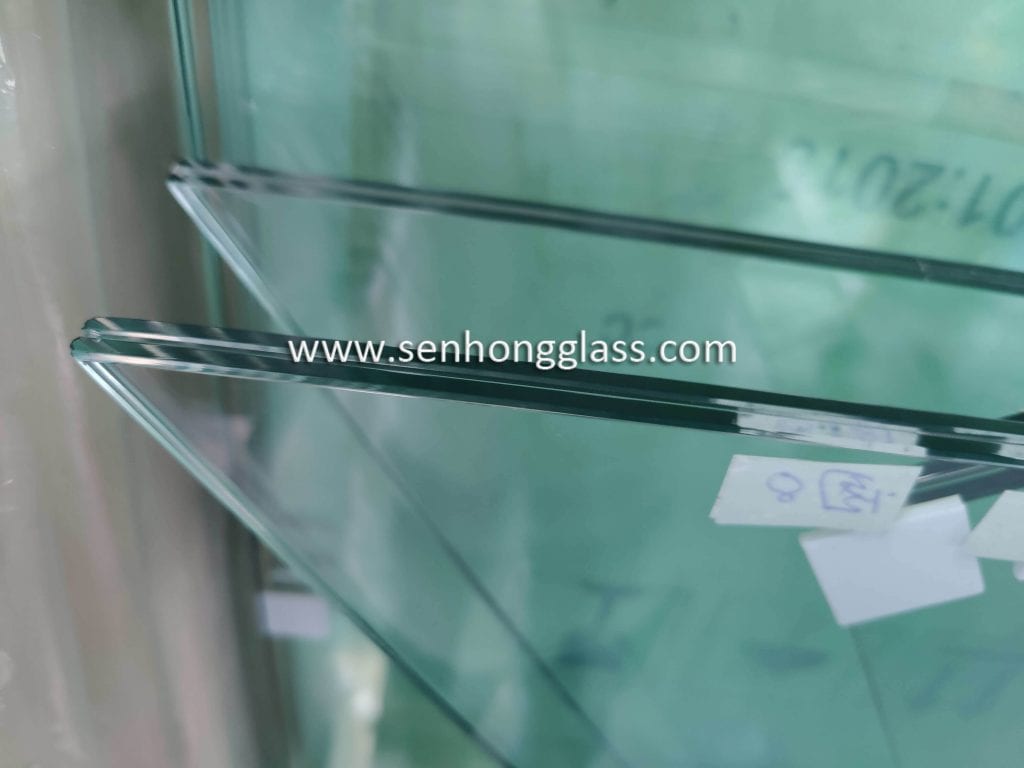

Tempered Laminated Glass With Holes & Polished Edges

Heat Soaked Testing

China 19mm-jumbo tempered-glass-heat-soaked-testing senhongA rare but nonetheless undesirable property of tempered glass is spontaneous breakage: tiny inclusions of nickel sulfide, invisible to the naked eye, expand in volume over time, and can cause the pane to break unexpectedly even years after installation. One reliable means of detecting nickel sulfide inclusions is the heat soaked test, in which the panes are warmed to about 290℃. During a soak time of about four hours in the heat soak oven, the tempered glass panes will nickel sulfide inclusion will probably break and hence never be installed in the first place.

Packing & Loading


Skylight, window, curtain wall, stairs, glass wall, glass railing.
